Commercial Roof Insulation (4 Types, R Values and Best Options)

Choosing the right commercial roof insulation determines more than just your energy bill. It affects code compliance, membrane compatibility, long-term roof performance, and the total installed cost of your roofing system. For building owners, facility managers, and architects specifying a commercial roofing project, this guide provides the comparative data you need: R-values, cost per square foot, ideal applications, and ASHRAE 90.1 compliance requirements for each major insulation type.

This guide covers:

• The 4 main commercial roof insulation types with R-values and cost data
• Cost-per-square-foot table by type and thickness
• ASHRAE 90.1 code compliance requirements
• How to select the right insulation for your building
• Installation considerations and what to expect

Why Insulation Choice Matters on a Commercial Roof

Commercial roof insulation sits between the roof deck and the waterproofing membrane, performing multiple functions simultaneously. It provides thermal resistance to reduce heating and cooling loads, structural support for the membrane above, and in some configurations, moisture management through vapor control. The wrong choice for your climate zone, membrane type, or budget can result in thermal bridging, moisture accumulation, compressed R-values over time, or voided manufacturer warranties on your membrane system.

For a full overview of how insulation fits into different commercial roof installation systems, our installation guide covers material sequencing and preparation requirements specific to low-slope and flat commercial roofing.

4 Types of Commercial Roof Insulation

Each insulation type performs differently across the variables that matter most to commercial decision-makers: R-value per inch, moisture resistance, long-term R-value stability, cost, and membrane compatibility.

Polyisocyanurate (Polyiso)

Polyiso is the most widely specified commercial roof insulation in the United States, and for good reason. It delivers the highest R-value per inch of any rigid board product, which makes it the most space-efficient choice for buildings where insulation thickness is constrained by existing parapet height, roof drain elevation, or structural considerations.

R-value: Approximately R-5.8 to R-6.5 per inch at standard conditions. Note that polyiso experiences thermal drift at low temperatures, with effective R-value dropping to approximately R-5.0 per inch in cold climates below 40 degrees Fahrenheit. This behavior must be accounted for in cold-climate specifications.

Best for: Warm and mixed climates, TPO and EPDM membrane systems, new construction projects where high thermal performance is required at minimum thickness.

Membrane compatibility: Compatible with all major commercial membrane systems including TPO, EPDM, PVC, and modified bitumen. Some manufacturers require a cover board over polyiso before membrane installation.

• Cost: $0.50 to $1.00 per square foot per inch of thickness.
• Long-term R-value: Moderate stability; cold-temperature drift should factor into specifications in climate zones 5 and above.
• Cover board required: Often yes, particularly under fully adhered membrane systems.
• Environmental: Made with recycled content; facers are typically glass fiber or foil.

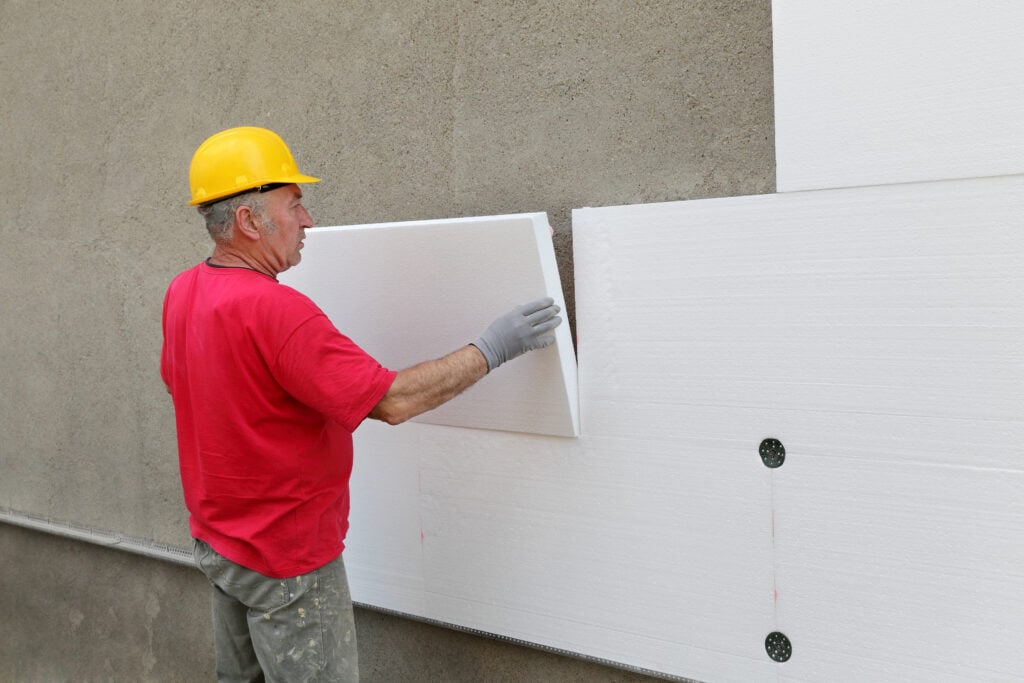

Expanded Polystyrene (EPS)

EPS is a closed-cell foam insulation manufactured from expanded polystyrene beads. Unlike polyiso, EPS does not experience thermal drift at cold temperatures, which makes it the more reliable R-value performer in northern climates. It is also vapor open, meaning it can dry in both directions if it becomes wet, which reduces the risk of long-term moisture accumulation within the insulation layer.

R-value: Approximately R-3.8 to R-4.0 per inch, stable across temperature ranges including cold climates where polyiso underperforms.

Best for: Cold climates, inverted roof membrane assemblies (IRMA), recover installations, and situations where long-term R-value stability is a priority over achieving maximum R-value per inch.

Membrane compatibility: Compatible with most commercial membrane systems. Widely used in inverted assemblies where the membrane sits below the insulation rather than above it.

• Cost: $0.30 to $0.60 per square foot per inch of thickness.
• Long-term R-value: Highly stable, no thermal drift, no significant degradation over time.
• Cover board required: Typically not required, though some membrane systems may specify one.
• Environmental: Recyclable; does not use HFCs in manufacturing.

Extruded Polystyrene (XPS)

XPS is a closed-cell foam board manufactured through an extrusion process that produces a denser, more moisture-resistant product than EPS. It is the standard choice for inverted roof membrane assemblies and other applications where the insulation is exposed to direct moisture contact over long periods.

R-value: Approximately R-5.0 per inch, stable over time and at cold temperatures.

Best for: Inverted roof membrane assemblies, plaza decks, parking structures, and applications where the insulation board will be exposed to consistent moisture or foot traffic loads. For flat roof material comparisons, see our flat roof materials guide.

Membrane compatibility: Primarily used in inverted assemblies where the membrane is below the insulation. Not typically placed directly under heat-welded TPO or PVC because the extrusion process produces a surface that can be incompatible with some adhesives.

• Cost: $0.50 to $0.90 per square foot per inch of thickness.
• Long-term R-value: Stable; XPS retains R-value well in wet conditions better than EPS over the long term.
• Cover board required: Not typically required; the board itself is dense enough for most applications.
• Environmental: Uses HFC blowing agents with higher global warming potential than EPS or polyiso; some manufacturers are transitioning to alternative blowing agents.

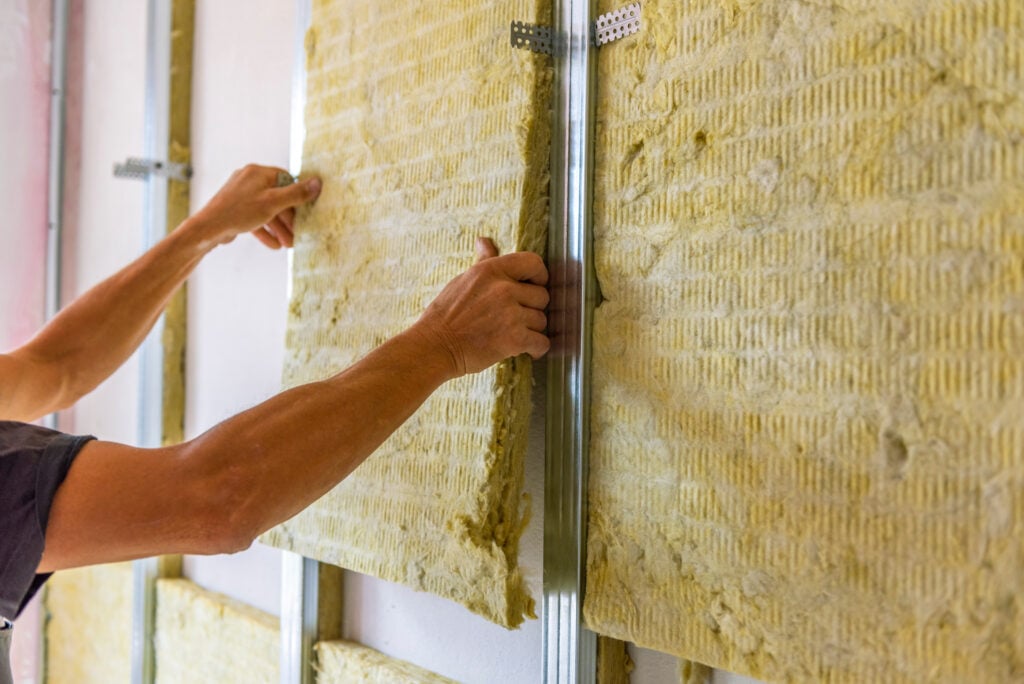

Mineral Wool (Stone Wool)

Mineral wool, also called stone wool or rock wool, is a non-combustible insulation manufactured from volcanic rock. Unlike foam-based insulation boards, mineral wool does not melt or contribute to fire spread, which makes it the preferred specification for projects with strict fire resistance requirements or where code mandates non-combustible assemblies.

R-value: Approximately R-3.7 to R-4.2 per inch, lower than polyiso or XPS but delivered in a fire-rated, dimensionally stable board.

Best for: Buildings subject to stringent fire codes, retrofit projects where non-combustibility is required, commercial construction in jurisdictions with IBC Class A assembly requirements, and applications where the insulation may be exposed to elevated temperatures from rooftop HVAC equipment.

Membrane compatibility: Compatible with TPO, EPDM, PVC, and modified bitumen systems. Frequently used in combination with polyiso cover boards in hybrid assemblies.

• Cost: $0.80 to $1.50 per square foot per inch of thickness, higher than foam alternatives.
• Long-term R-value: Stable; does not compress or degrade in moisture-exposed conditions.
• Cover board required: Typically not required; the board itself provides a suitable membrane substrate.
• Environmental: Made from abundant natural volcanic rock; non-toxic and does not off-gas.

Commercial Roof Insulation Cost Per Square Foot

This table gives facility managers and specifiers a baseline for comparing installed insulation cost at common commercial thicknesses. Material costs vary by region and market conditions; these ranges reflect typical Tri-State area pricing for commercial projects.

Note: These are material costs only. Installation labor, cover boards, adhesives, and membrane system costs are additional. Total installed insulation costs typically add $1.50 to $4.00 per square foot for labor and accessories depending on system complexity.

ASHRAE 90.1 Code Compliance for Commercial Roof Insulation

ASHRAE 90.1, the energy standard for commercial buildings adopted by most building codes across Indiana, Kentucky, and Illinois, establishes minimum R-value requirements for roof insulation based on climate zone. For most of the Tri-State area:

• Climate Zone 4 (southern Indiana, Kentucky): Minimum continuous insulation R-value of R-20 for commercial roofs.
• Climate Zone 5 (northern Indiana, parts of Illinois): Minimum continuous insulation R-value of R-30 for commercial roofs.

These are minimum values. Many energy-conscious projects and facilities pursuing LEED certification or energy tax incentives specify insulation levels significantly above these thresholds, typically R-30 to R-40 in climate zone 4 and R-40 to R-60 in climate zone 5.

Multiple layers of insulation with staggered joints are the standard approach for achieving higher R-values while minimizing thermal bridging through fastener points. A common commercial specification for climate zone 4 might include two layers of 2-inch polyiso (approximately R-24) with a half-inch cover board, achieving code compliance while providing a proper substrate for the membrane above.

5 Factors That Determine the Right Insulation for Your Building

Selecting the right commercial roof insulation is not simply a matter of picking the highest R-value product. Several building-specific variables affect which product performs best and complies with applicable requirements.

1. Climate Zone

Polyiso is the dominant choice in warm and mixed climates. In climate zones 5 and 6, EPS or hybrid polyiso plus EPS assemblies are frequently specified to compensate for polyiso’s cold-temperature R-value drift.

2. Membrane System

The insulation must be compatible with the membrane being installed above it. For TPO roofing systems, most manufacturers specify a cover board between polyiso and the membrane on fully adhered assemblies. EPDM systems are more permissive regarding substrate requirements.

3. Fire Code Requirements

Buildings subject to IBC Type I or II construction requirements, or those in jurisdictions that require non-combustible roof assemblies, may require mineral wool as the primary insulation board or as a cover layer over foam insulation.

4. Moisture Risk

Buildings in consistently wet environments, or assemblies where the insulation may be exposed to moisture during a phased installation, benefit from EPS or XPS over polyiso, which can absorb moisture through its facers if left exposed.

5. Budget and Thickness Constraints

When parapet height or existing drain elevations limit total roof assembly depth, polyiso’s superior R-value per inch allows code compliance at reduced thickness. When budget is the primary driver and thickness is not constrained, EPS provides the lowest cost per R-value of any rigid board product.

Common FAQs About Commercial Roof Insulation

How much insulation does a commercial roof need?

Most commercial buildings in the Tri-State area require a minimum of R-20 to R-30 of continuous insulation to meet ASHRAE 90.1 requirements, depending on climate zone. Projects pursuing energy incentives or LEED points typically specify R-30 to R-60.

Can insulation be added to an existing commercial roof?

Yes. Adding insulation is a standard component of commercial roof replacement and recovery projects. Existing insulation that is dry and structurally intact can remain in place, with new insulation added above it to reach required R-values. See our commercial roof insulation guide for a detailed overview of material selection for retrofit applications.

What is a cover board and do I need one?

A cover board is a thin rigid board, typically half-inch high-density polyiso, gypsum, or wood fiber, installed between the primary insulation and the membrane. It provides a smooth, firm substrate for membrane adhesion, protects the insulation from fastener pull-through, and improves fire performance. Most fully adhered membrane systems require a cover board over foam insulation.

Specify the Right System With Embry’s Roofing

Commercial roof insulation selection has real consequences for energy performance, code compliance, and long-term system durability. Getting it right requires matching insulation type, thickness, and layering sequence to your building’s climate zone, membrane system, fire requirements, and budget.

We’re proud to serve business owners and facility managers across the Tri-State area including Paducah, KY with commercial roofing specifications, free inspections, and installations backed by over 45 years of experience. Our HAAG certified inspectors and GAF Master Contractor credentials mean every project is specified and installed to perform. Contact Embry’s Roofing today for a free commercial roofing consultation and find out which insulation system is right for your building.
